    1730nm Solid State Laser For PAI Photoacoustic Imaging

    1730nm Laser For Photoacoustic Imaging

    Photoacoustic imaging (PAI) is a new non-invasive and non ionizing biomedical imaging method developed in recent years. When the pulse laser irradiates the biological tissue, the light absorption domain of the tissue will produce the ultrasonic signal. The light acoustic signal generated by the biological tissue carries the light absorption characteristic information of the tissue. By detecting the light acoustic signal, the light absorption distribution image in the tissue can be reconstructed. It can break through the “soft limit” (~ 1 mm) of high-resolution optical imaging depth and realize the imaging of 50 mm deep tissue in vivo.(Download PDF)


    Parameter

    Central wavelength (nm)1730
    Output Power (mJ)>1
    Energy Stability<3%
    Repeat Frequency (KHz)2
    Pulse Width (ns)~10
    Divergence Angle<7
    Control MethodLocal / Remote
    Control InterfaceDB9,RS422
    Cooling MethodWater cooling
    Powered By220VAC/50Hz

    Operating Temperature (℃)15-35
    Storage Temperature (℃)0-50
    Humidity0-80%

    Laser Head Weight (Kg)10
    Power Weight (Kg)10

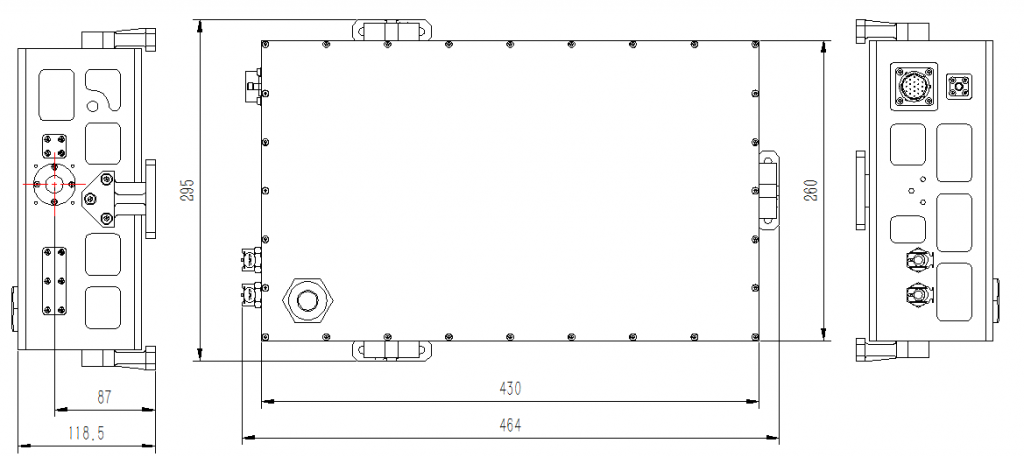

    Laser Head Size (mm)464*260*118.5
    Power Size2U

    Feature

    • High-efficiency nonlinear frequency transformation
    • Compact and easy to integrate
    • Local control and external control
