    633nm Narrow Linewidth Laser System of NLM Series

    Ask Lasest Price
    Brand Name : CRYLINK
    Model Number : 633nm Narrow Linewidth Laser System of NLM Series
    Certification : ISO9001
    Price : custom
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    633nm Narrow Linewidth Laser System of NLM Series

    633nm Narrow Linewidth Laser System of NLM Series

    633nm is one of the most widely used standard wavelengths at present. The 633nm narrow linewidth semiconductor laser system introduced by our company adopts the volume Bragg grating (VBG) wave locking technology, which enables the semiconductor laser to achieve narrow linewidth and stable power output. It can replace the traditional He Ne exciter in many fields. At the same time, compared with the He Ne laser, it has the advantages of compact structure and continuously adjustable power, Two output modes, spatial collimation and fiber coupling, can be provided.(Download PDF)

    Parameter


    CL633-SIF(FP)-20mW-NLM003CL633-MIF(FP)-50mW-NLM004CL633-SOW-50mW-NLM005
    Central Wavelength (nm)633633633
    Output Power (mW)20(Single mode)50(Multimode)50(Multimode)
    Wavelength Tolerance (nm)±0.5±0.5±0.5
    Line Width (nm)<0.1<0.1<0.1
    Wavelength Stability±0.005nm@8H±0.005nm@8H±0.005nm@8H
    Power Stability±1.0%@8H±1.0%@8H±1.0%@8H
    Edge Mode Rejection Ratio40 dB40 dB40 dB
    Spot Diameter (mm)//1.3ⅹ0.7
    Beam Divergence Angle//<1.5

    CL633-SIF(FP)-20mW-NLM003CL633-MIF(FP)-50mW-NLM004CL633-SOW-50mW-NLM005
    Power Adjustment Range0~100%0~100%0~100%
    Preheat Time (min)151515
    Modulation Input1kHz TTLOr Analog signal0-5V1kHz TTLOr Analog signal0-5V1kHz TTLOr Analog signal0-5V
    Control InterfaceUSB,BNCUSB,BNCUSB,BNC
    Fiber InterfaceFC/PCFC/PCSpatial output
    Adaptive Optical Fiber105µm,0.22NA105µm,0.22NA/
    Power Input100V-240V 50/60Hz100V-240V 50/60Hz100V-240V 50/60Hz
    System Power Consumption<7W Typ.<7W Typ.<7W Typ.
    Storage Temperature (℃)-10~60-10~60-10~60
    Storage Humidity0~80%RH0~80%RH0~80%RH
    Operating Temperature (℃)10~3510~3510~35
    System Weight (Kg)2.22.22.2

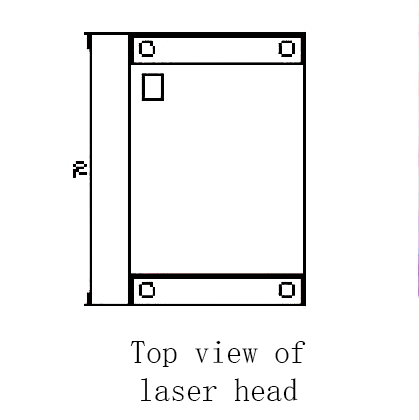

    Laser Head Size (mm)45ⅹ35ⅹ7045ⅹ35ⅹ7045ⅹ35ⅹ70

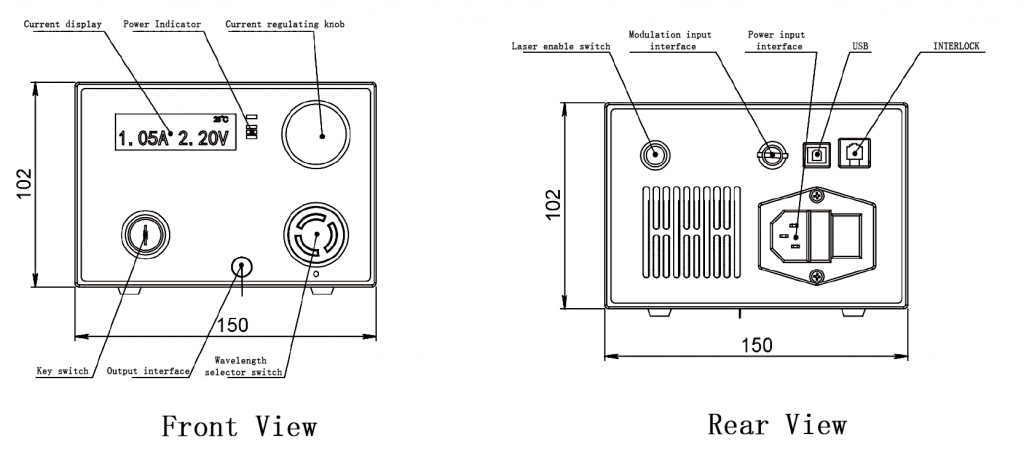

    Laser Power Size (mm)150ⅹ102ⅹ200150ⅹ102ⅹ200150ⅹ102ⅹ200


    Feature

    • Line width<0.07nm
    • Frequency stability is better than ±0.005nm@8H
    • Temperature drift<0.007nm/℃
    • Built in Tec, power stability better than ±1%
    • Including upper computer control, short circuit protection and other functions

    Application

    • Confocal microscopy
    • Raman spectrum detection
    • Fluorescence spectrum detection
    • Particle size detection
    • He-Ne laser replacement
