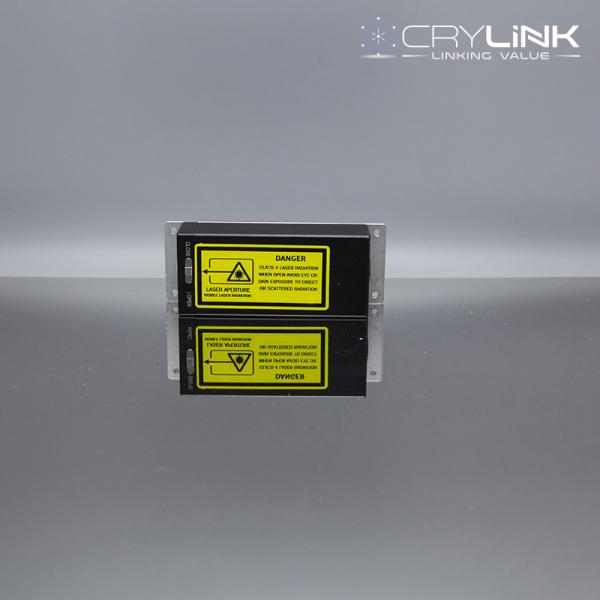

    355nm Microchip Laser System of MB Series

    Ask Lasest Price
    Brand Name : CRYLINK
    Model Number : 355nm Microchip Laser System of MB Series
    Certification : ISO9001
    Price : custom
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    355nm Microchip Laser System of MB Series

    355nm 550ps Microchip Laser System of MCB Series

    MCB series microchip laser products have very ideal narrow pulse width, but also can achieve high single pulse energy. The product is a passive Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure and tailless, the single pulse energy is stable, and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include four wavelengths of 1064nm, 532nm, 355nm and 266nm. The full sealing module inside the laser head can be used by customers for secondary development and application. The superior product performance index makes its application range very wide, especially in laser measurement, which can meet many different kinds of measurement needs, and also has excellent performance in the application of laser seeds.(Download PDF)


    Optical Parameter

    CL355-100Hz-25μJ-MCB004CL355-100Hz-35μJ-MCB005CL355-100Hz-70μJ-MCB006
    Wavelength (nm)355355355
    Repetition Frequency (kHz)10.10.1
    Average Powe (mW)253.57
    Output Energy (uJ)253570
    Pulse Width (ps)500500500
    Power Stability (8h)±3%±3%±3%
    Beam ModeTEM00TEM00TEM00
    Full-Angle Divergence Angle Typ.
    (Mrad) Level @ 1/e2
    <4<2<2
    Vertical @ 1 / e2<4<2<2
    Polarization Characteristics>100:1>100:1>100:1

    • Pulse width up to 500ps
    • Pulse energy up to 170μJ
    • External pump source fiber pump pulse
    • Charge energy up to 360μJ
    • Maximum repetition frequency up to 1kHz
    • Beam mode is TEM00
    • Fully sealed design, high reliability
    • Seed source
    • Micromachining
    • Biomedical Science
    • Laser ultrasonic inspection
    • Laser ionization mass spectrometry
    • Non-linear optical measurement
    • Laser-induced fluorescence
    • Laser induced breakdown spectroscopy
