    NLS Series 785nm Single Mode Narrow Linewidth Laser Module

    Ask Lasest Price
    Brand Name : CRYLINK
    Model Number : 785nm Single Mode Narrow Linewidth Laser Module of NLS Series
    Certification : ISO9001
    Price : custom
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

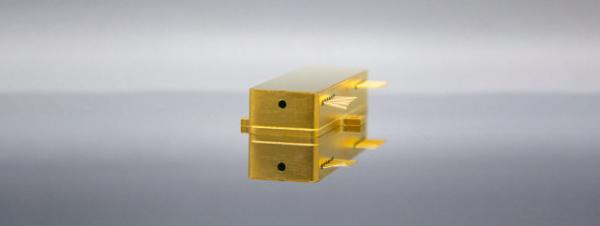

    NLS Series 785nm Single Mode Narrow Linewidth Laser Module

    785nm Single Mode Narrow Linewidth Laser Module of NLS Series

    Single mode narrow linewidth laser module is a special product of our company. It is equipped with standard I / O interface, which can be easily embedded into the user’s whole system and realize very stable single mode narrow linewidth laser output. The product has built-in optimized optical feedback power stabilization module and Tec refrigeration module, which makes the product have good spectral characteristics and power stability characteristics. Customized and secondary development services can be provided according to customer requirements.(Download PDF)

    ModelCL785-SIF(FA)-50mW-NLS001
    Optical ParameterCentral Wavelength (nm)785
    Output Power (mW)50
    Wavelength Tolerance (nm)±0.5
    Line Width (nm)<0.1
    Wavelength Stability±0.005nm@8H
    Power Stability±1.0%@8H
    Side Mode Rejection Ratio (dB)40
    System ParameterPower Adjustment Range0~100%
    Preheat Time (min)15
    Control InterfacePH2.0-10P,USB
    Fiber InterfaceFC/APC
    Adaptive Optical Fiber5µm,0.14NA
    Power Input4.9V-5.1V @2A
    System Power Consumption (W)<4
    Storage Temperature (℃)0~70
    Storage Humidity0~80%RH
    Operating Temperature (℃)10~35
    System Weight (g)150
    Laser Power Size (mm)76.2ⅹ63.5ⅹ22

    • Wavelength stability ± 0.005nm / ℃
    • High power single mode fiber coupled output
    • USB settings
    • Low power consumption, typical power consumption <4W

    • Confocal microscope
    • Raman spectrometer
    • Fluorescence Spectrometer
    • Up-conversion material
    • Laser particle size analyzer
