| Brand Name : | CRYLINK |

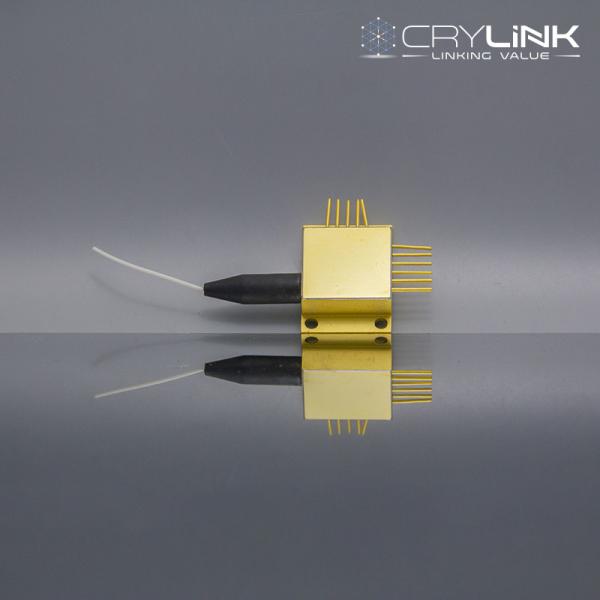

| Model Number : | 784 / 785nm Dual Wavelength and Narrow Linewidth Packaging Module of DWM Series |
| Certification : | ISO9001 |
| Price : | custom |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Mode | CL784785-0.5-600600mW-DWM001 | |
| Optical Parameter | Continuous Output Power (mW) | 600(Each wavelength) |
| Center Wavelength (nm) | 784/785 | |
| Spectral Width (nm) | <0.1 | |
| Characteristics of Wavelength With Temperature (nm/℃) | 0.01 | |
| Electrical Parameter | Threshold Current (mA) | 0.4 |
| Operating Current (mA) | 1.2 | |
| Operating Voltage (V) | 2 | |
| Differential Efficiency (W/A) | 0.7 | |
| PD Current (µA) | <2000 | |
| Thermistor Parameters (kΩ/β(25℃)) | 10±5%/3450 | |
| TEC Maximum Current (A) | 2.2 | |
| TEC Maximum Voltage (V) | 8.7 | |
| Optical Fiber Parameter | Fiber Diameter (µm) | 105 |
| Fiber Cladding Diameter (µm) | 125 | |
| Fiber Coating Diameter (µm) | 250 | |
| Numerical Aperture | 0.22 | |
| Fiber Length | 100±10(Other lengths can be customized) | |
| Connector | FC/PC, ST, SMA905 | |
| Other Parameter | Operating Temperature (℃) | 10-30 |
| Operating Relative Humidity (%) | 75 | |
| Storage Temperature (℃) | -20~70 | |
| Storage Relative Humidity (%) | 90 | |
| Pin Soldering Temperature,Max (℃) | 250(10 Sec.) |
|
