    CRYLINK NF Nd Glass Low Nonlinear Coefficient High Fluorescence Lifetime

    Ask Lasest Price
    Brand Name : CRYLINK
    Certification : Iso9001
    Price : negotiation
    Delivery Time : 3-4 weeks
    Payment Terms : TT
    Supply Ability : 100 pieces /month
    • Product Details
    • Company Profile

    CRYLINK NF Nd Glass Low Nonlinear Coefficient High Fluorescence Lifetime

    You are here: Home / Laser Products / Laser Glass / NF Nd:Glass

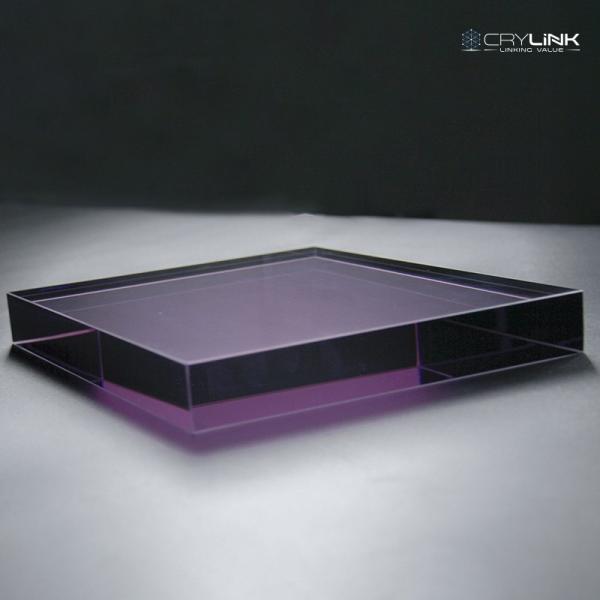

    NF Nd:Glass

    Nd-doped Fluorophosphate glass has the characteristics of low nonlinear coefficient, high fluorescence lifetime, easy large-scale preparation, excellent glass forming performance and good crystallization stability, and meets the requirements for energy storage and amplification of high-energy laser systems. Two kinds of NF glass.

    Parameter

    Laser Specifications
    NF1NF2
    NdF3 (wt%)0.881.07
    Nd3+conc.(1020ions/cm3)0.2±0.11.2±0.1
    Cross section for stimulated emission(10-20cm2)2.7±0.13.4±0.1
    Lifetime at 1053nm(sec)≥515(NdF3:0.53wt%)≥430(NdF3:0.53wt%)
    ≥495(NdF3:1.07wt%)≥410(NdF3:1.07wt%)
    Effective bandwidth(nm)32.830.4
    Fluorescence peak wavelength(nm)10531053
    Absorption coefficient(cm-1)≤0.001(1053nm)≤0.001(1053nm)
    ≤0.04(400nm)≤0.04(400nm)
    ≤0.08(3333nm)≤0.08(3333nm)

    Optical Specifications
    NF1NF2
    Non-linear refractive index coeff.n2( ×10-13e.s.u)≤0.6≤0.86
    Refractive index(1053nm)1.464±0.0031.514±0.003
    Abbe value8877
    dn/dT-8.84-8.6

    Thermal Specifications
    NF1NF2
    Transformation temp.(℃)450490
    Softening temp.(℃)491528
    Coeff. of linear thermal expansion(10-7/K)(50~100℃)152142
    Thermal coeff. of optical path length(10-6/K)(50~100℃)-1.86-1.2
    Thermal conductivity(25℃)(W/mK)0.865

    Other Specifications
    NF1NF2
    Density(g/cm3)3.653.68
    Young’s modulus(G Pa)7376
    Knoop hardness(kg/cm2)343423
    Fracture toughness(MPam1/2)0.350.58

    Quality CRYLINK NF Nd Glass Low Nonlinear Coefficient High Fluorescence Lifetime for sale
