    355nm Microchip Laser System of MC Series

    Ask Lasest Price
    Brand Name : CRYLINK
    Model Number : 355nm 750ps Microchip Laser System of MCC Series
    Certification : ISO9001
    Price : custom
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

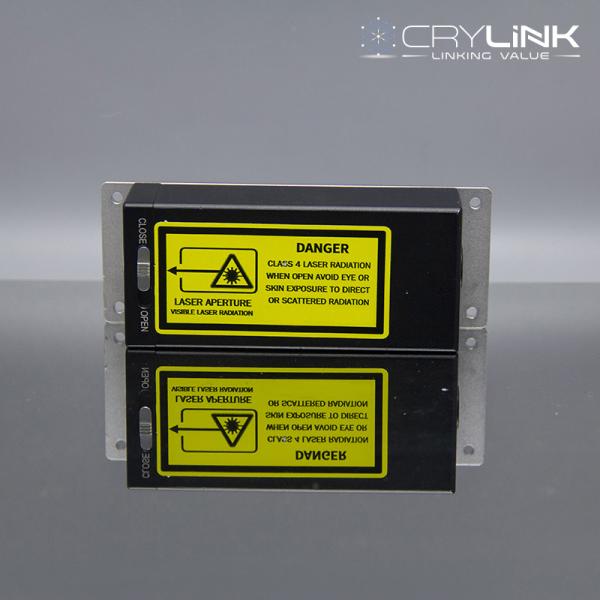

    355nm Microchip Laser System of MC Series

    355nm 750ps Microchip Laser System of MCC Series

    MCC series microchip laser products have very ideal narrow pulse width, but also can achieve high single pulse energy. The product is a passive Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure and tailless, the single pulse energy is stable, and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include four wavelengths of 1064nm, 532nm, 355nm and 266nm. The full sealing module inside the laser head can be used by customers for secondary development and application. The superior product performance index makes its application range very wide, especially in laser measurement, which can meet many different kinds of measurement needs, and also has excellent performance in the application of laser seeds. We can also provide 1064nm and 532nm isolators.(Download PDF)


    ModelRepetition FrequencyAverage PowerOutput EnergyPulse Width
    CL355-100Hz-150μJ-MCC0050.1 kHz15 mW150 uJ700 ps
    CL355-500Hz-90μJ-MCC0060.5 kHz45 mW90 uJ700 ps
    CL355-1KHz-15μJ-MCC0071 kHz15 mW15 uJ700 ps
    CL355-5KHz-10μJ-MCC0085 kHz50 mW10 uJ700 ps
    CL355-10KHz-10μJ-MCC00910 kHz100 mW10 uJ700 ps

    • Pulse width up to 700ps
    • Pulse energy up to 80 μJ
    • External pump source fiber pump pulse energy can reach 500μJ
    • Repetition frequency up to 10kHz
    • Beam mode is TEM00
    • Fully sealed design, high reliability
    • Seed source
    • Micromachining
    • Laser ionization mass spectrometry
    • Laser ultrasonic inspection
    • Optical Parametric Oscillating Pump Source
    • Biomedical Science
    • Laser-induced fluorescence
    • Laser induced breakdown spectroscopy
