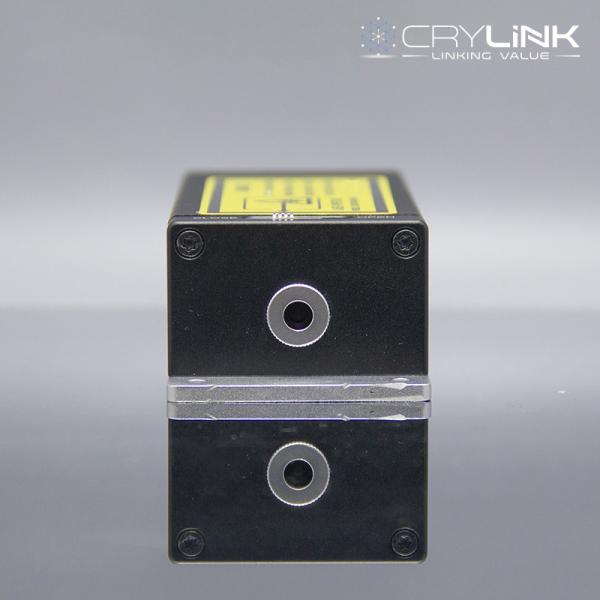

    266nm 350ps Microchip Laser System of MCH Series

    Ask Lasest Price
    Brand Name : CRYLINK
    Model Number : 266nm 350ps Microchip Laser System of MCH Series
    Certification : ISO9001
    Price : custom
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    266nm 350ps Microchip Laser System of MCH Series

    266nm 350ps Microchip Laser System of MCH Series

    MCH series high repetition rate microchip laser series can achieve high repetition rate while the pulse width is less than 300ps. The product is a passively Q-switched solid-state laser based on semiconductor pump, with stable energy, good beam quality and single longitudinal mode operation. The laser is designed with full seal, small size, convenient for user installation and integration. The system supports internal and external triggering and can be used for secondary development.(Download PDF)


    ModelCL266-1KHz-3μJ-MCH001CL266-5KHz-1μJ-MCH002
    Optical ParameterWavelength (nm)266266
    Repetition Frequency (kHz)15
    Average Powe (mW)35
    Output Energy (uJ)31
    Pulse Width (ns)300280
    Power Stability (8h)±3%±3%
    Beam ModeTEM00TEM00
    Full-Angle Divergence Angle Typ.
    (Mrad) Level @ 1/e2
    <3<3
    Vertical @ 1/e2<3<3
    Polarization Characteristics>100:1>100:1
    System ParametersPower Input100-240 VAC,50/60Hz100-240 VAC,50/60Hz
    Modulation InputTTL0-5V,SMA interfaceTTL0-5V,SMA interface
    Control InterfaceRS232,USBRS232,USB
    System Power Consumption (W)<30<40
    Power Supply Size (W × H × L, mm)150×76×146150×76×146
    Laser Head Size (W × H × L, mm)45×30×12045×30×120
    Working Temperature (℃)15-3515-35
    Storage Temperature (℃)0-500-50

    • Pulse width up to 280ps
    • Pulse energy up to 32µJ
    • Maximum repetition frequency up to 20KHz
    • Beam mode is TEM00

    • Laser micromachining
    • Seed source
    • Ultrasound imaging
    • analytical chemistry
    • Time-resolved Raman spectroscopy
    • Biophotonics
