    Flow Cytometry 785nm Optical Solid State Laser

    Ask Lasest Price
    Brand Name : CRYLINK
    Model Number : 785nm Optical Fiber Output Accurate Wavelength Laser Module of AWO Series
    Certification : ISO9001
    Price : custom
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Flow Cytometry 785nm Optical Solid State Laser

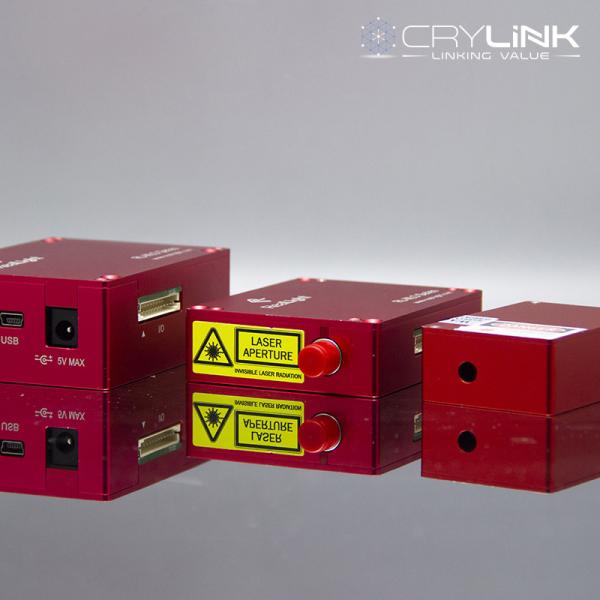

    785nm Optical Fiber Output Accurate Wavelength Laser Module of AWO Series

    The quasi wavelength semiconductor laser module introduced by our company has a variety of wavelengths to choose from, equipped with standard input / output interface, which can be easily embedded into the user’s whole system and achieve stable power output. This series of products adopt optical fiber coupling output mode, equipped with TEC refrigeration module, can provide customized and secondary development services according to customer requirements.(Download PDF)

    ModelCL785-SIF(FA)-40mW-AWO009CL785-SIF(FP)-40mW-AWO010
    Optical ParameterCentral Wavelength (nm)785785
    Wavelength Tolerance (nm)±10±10
    Output Power (mW)4040
    Line Width (nm)<6<6
    Power Stability±1.0%@8H±1.0%@8H
    System ParameterPower Adjustment Range0~100%0~100%
    Preheat Time (Min)1515
    Modulation InputPH2.0-10PPH2.0-10P
    Fiberl InterfaceFC/APCFC/PC
    Power Input4.9~5.14.9~5.1
    System Power Consumption (W)<4<4
    Storage Humidity (RH)0~80%0~80%
    Storage Temperature (℃)0~550~55
    Operating Temperature (℃)10~3510~35
    System Weight (g)<130<130
    System Size (mm)76.2×63.5×2276.2×63.5×22

    • Power stability is better than ± 1% @ 8H
    • Built-in TEC, typical power consumption <4W
    • Small size, 76.2ⅹ63.5ⅹ22mm
    • Optional USB control interface, hardware lock

    • Fluorescence Spectrometer
    • Laser particle size analyze
    • Flow cytometry
    • Confocal microscope
    • Raman spectrometer
