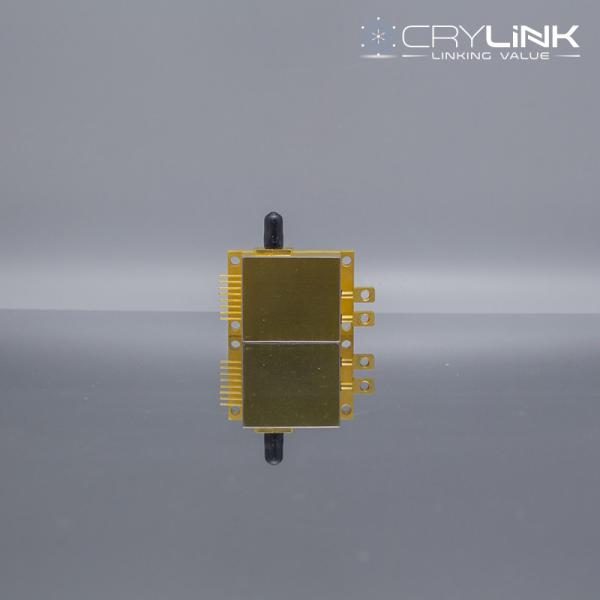

Medical 0.22NA 6W 1064nm Semiconductor Laser Module

Nanjing Crylink Photonics Co.,Ltd
Contact Now
    Buy cheap Medical 0.22NA 6W 1064nm Semiconductor Laser Module from wholesalers

    Buy cheap Medical 0.22NA 6W 1064nm Semiconductor Laser Module from wholesalers
    • Buy cheap Medical 0.22NA 6W 1064nm Semiconductor Laser Module from wholesalers
    • Buy cheap Medical 0.22NA 6W 1064nm Semiconductor Laser Module from wholesalers

    Medical 0.22NA 6W 1064nm Semiconductor Laser Module

    Ask Lasest Price
    Brand Name : CRYLINK
    Model Number : 1064nm Semiconductor Laser Module
    Certification : ISO9001
    Price : custom
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Medical 0.22NA 6W 1064nm Semiconductor Laser Module

    1064nm Semiconductor Laser Module


    (Download PDF)

    ModelCL1064-3-6W-SML039
    Optical ParameterContinuous Output Power (W)6
    Center Wavelength (nm)1064±3
    Spectral Width (nm)<6
    Characteristics of Wavelength With Temperature (nm/℃)0.3
    Indication LightOutput Power (mW)2
    Wavelength (nm)650±10
    Voltage (V)2.2,5.0
    Electrical ParameterThreshold Current (A)0.33
    Operating Current (A)3.2
    Operating Voltage (V)5.7
    Differential Efficiency (W/A)2
    PD Current (µA)<3000
    Thermistor Parameters (kΩ/β(25℃))10±5%/3450
    Optical FiberFiber Diameter (um)200
    ConnectorSMA905
    Other ParameterOperating Temperature (℃)10-30
    Operating Relative Humidity (%)75
    Storage Temperature (℃)-20~70
    Storage Relative Humidity (%)90
    Pin Soldering Temperature,Max (℃)250(10 Sec.)

    • Output power:6W
    • Wavelength:1064±6nm
    • Fiber core diameter:200 µm
    • Numerical aperture:0.22NA
    • Indicator light: 650nm

    • Medical application
    • Material processing
