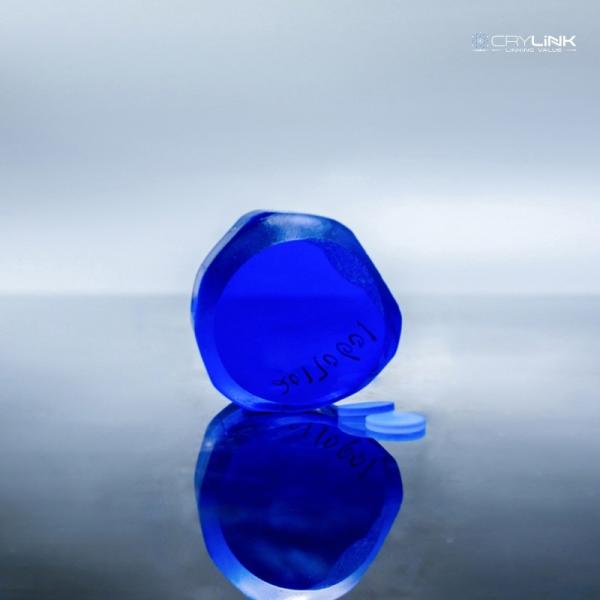

Cobalt-doped magnesium aluminate spinel (Co:MgAl2O4) allow the generation of short nanosecond pulse with high peak power around the eye-safe wavelength of 1.5um,perfect for telemetry applications. The absorption spectrum of Co2+-doped MgAl2O4 exhibited a broad absorption band in the wavelength range of 1200–1600 nm, which indicated that Co2+ ions substituted for the tetrahedrally coordinated Mg2+ ions in the MgAl2O4 lattice. Passive Q-switching of solid-state lasers with solid-state saturable absorbers is a very attractive Q-switching technique because it allows to develop compact and low cost laser sources of nano and sub nanosecond pulses far various applications

Physical and Chemical Properties

Metarial and Specifications

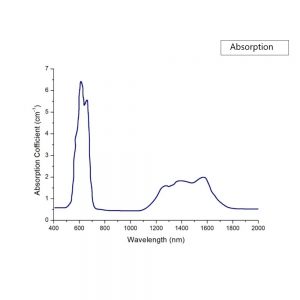

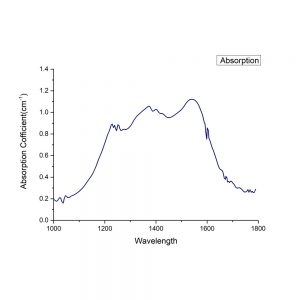

Absorption Spectrum

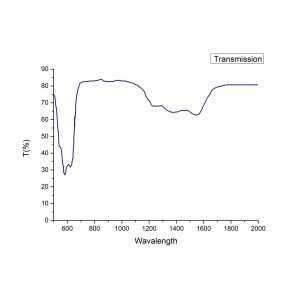

Transmission Spectrum

Feature

• Rare excited absorption
• High constant of Q-switch
• High absorption section
• Long excited lifetime
• Evenly distributed cobalt
• Wide absorption band
