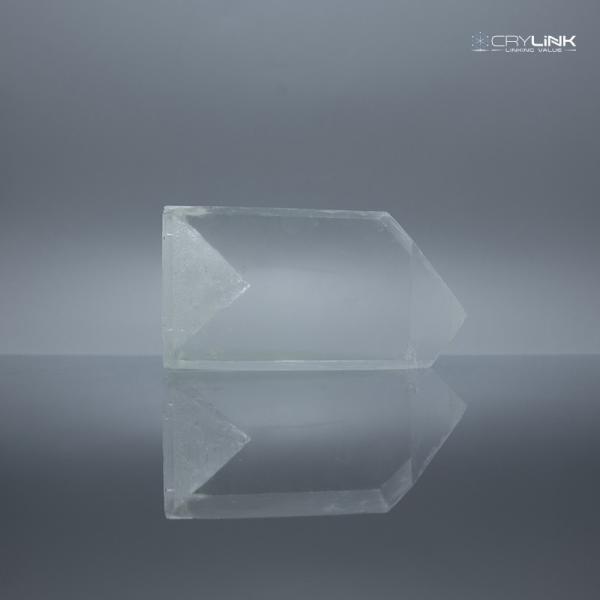

    Thermal Properties Sapphire Crystals / Sapphire Optics Extreme Surface Hardness

    Ask Lasest Price
    Brand Name : CRYLINK
    Certification : Iso9001
    Price : negotiation
    Delivery Time : 3-4 weeks
    Payment Terms : TT
    Supply Ability : 100 pieces /month
    Model Number : CRYLINK-Sapphire Crystal
    • Product Details
    • Company Profile

    Thermal Properties Sapphire Crystals / Sapphire Optics Extreme Surface Hardness

    Product Details

    Sapphire crystal is an excellent multifunctional material widely used in industry, national defense, and aerospace. It has high-temperature resistance up to 2000 ℃, good thermal conductivity, high hardness (Morse 9th) and good chemical stability. Usually, this material is used for high-temperature resistant infrared window, solid laser, precision wear-resisting bearings. It is also widely applied in crystal substrate, especially for blue, purple, white light-emitting diodes (LED) and blue light laser (LD). As the hardest material among all oxide crystals, Sapphire has a combination of good optical and physical properties, which even maintains at high temperature, making it the best choice for a variety of demanding applications.


    Features

    • Extreme surface hardness
    • High-temperature resistance
    • Good thermal properties
    • Excellent electric and dielectric properties and chemical resistance
    • Transmitting wavelength ranging from UV to Mid-Infrared

    Applications

    • Thin and high-strength window
    • Optical substrates and window
    • Transparent electronic substrate
    • High-temperature and pressure window
    • Right angle prism

    Chemical and Phisical Properties


    PropertyValue
    Chemical formulaAl2O3
    Crystal structureHexagonal
    Density6.73g/cm3
    Melting Point2040°C
    Refractive Indexn=1.84 @550 nm
    n=1.623 @500 nm
    Transmission band (μm)0.15-6

    Polish

    Surface flatness<λ/8@632nm
    Clear aperture>90%
    Orentation tolerance<0.5°
    Parallel10”
    Perpendicular5’
    Surface quality10/5 (Scratch/Dig)
    Chamfer<0.2×45°
    Wavefront distorsion<λ/8@632 nm
